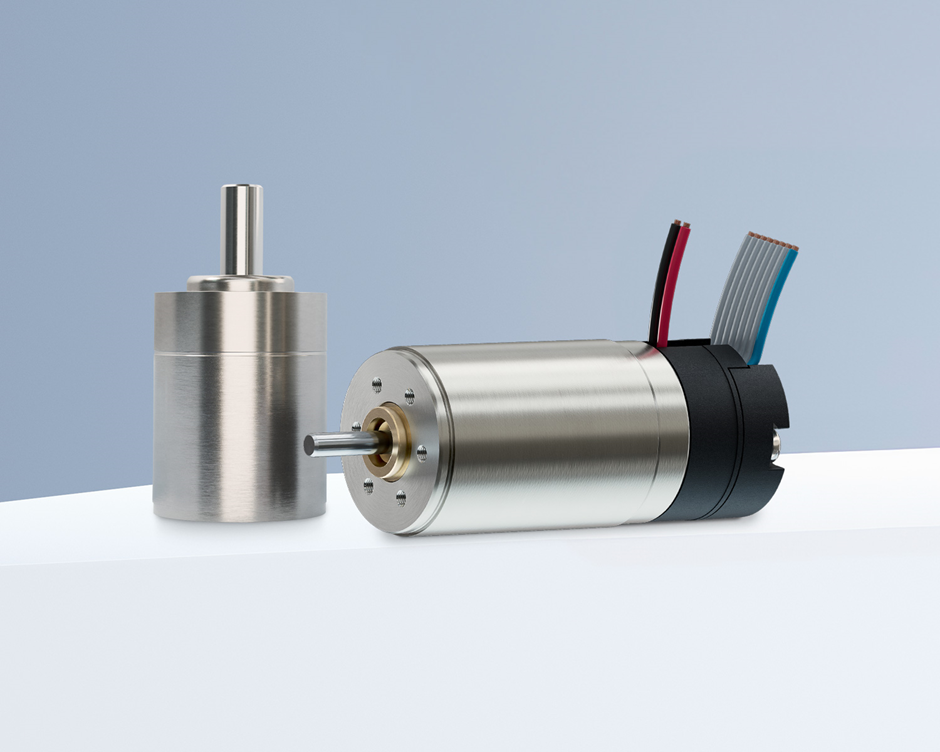

Ø 16 mm Drive Systems – Precision, Power & Integration
FAULHABER introduces a new complete drive system solution built entirely around a Ø 16 mm diameter – combining motors, gearheads, and encoders that are perfectly matched in size, performance, and reliability. Designed for high-performance motion control in applications like robotics, medical devices, industrial automation, and aerospace, this modular system offers seamless integration and maximum design flexibility.With new additions to the GXR and SXR brushed motor families, the compact 16GPT gearhead, and the high-precision IEX3 encoder, engineers can now specify an entire miniature drive system from a single trusted source – all RoHS-compliant and engineered for demanding conditions.

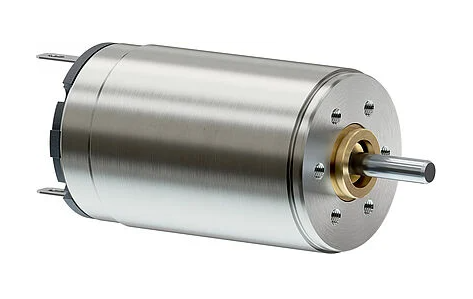

1627 GXR Brushed DC Motor – Robust & Customisable
-
Copper-graphite commutation for high power output and long life
-
Voltage range: 4.5 V to 24 V for flexible power options
-
Multiple bearing configurations available
-
Customisation options include shaft modifications, vacuum or high-temp versions
-
Optimised rotor balancing for smooth, low-vibration operation
-
Hexagonal winding technology improves copper density and thermal performance
-
High-quality magnets for enhanced torque and efficiency
1627 SXR Brushed DC Motor – Compact Power with Precious Metal Commutation
-
New 16 mm addition to the SXR range (alongside 1218 & 1228 models)
-
Precious metal commutation for ultra-low noise and low current startup
-
Excellent power-to-volume ratio – ideal for portable and space-constrained designs
-
RoHS-compliant with multiple electrical connection configurations

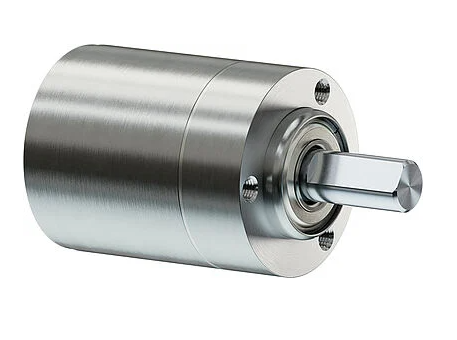

16GPT Planetary Gearhead – High Torque in Minimal Space
-
Diameter-compliant 16 mm gearbox – a perfect match for GXR and SXR motors
-
Metal planetary construction for high torque transfer and long service life
-
Designed for high input speeds and full motor speed range utilisation
-
Rugged internal structure handles high axial and radial loads with ease
-
Ideal for applications with limited installation space

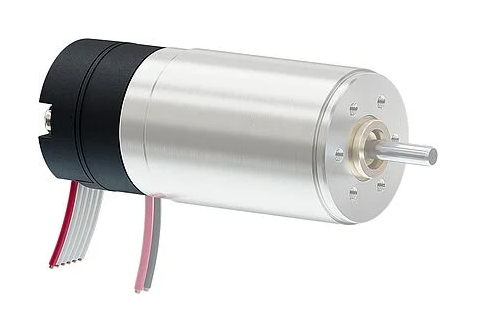

IEX3 Magnetic Encoder – Precision Feedback in Compact Form
-
High-resolution positioning with typical accuracy of 0.3°
-
Available in IEX3 and IEX3 L variants – with or without line driver
-
Wide voltage range: 3.3 V to 5 V – ideal for battery-powered systems
-
Broad operating temperature: -40 °C to +100 °C
-
Extremely compact and easy to integrate and maintain
-
Seamlessly compatible with 16 mm FAULHABER motors and gearheads
