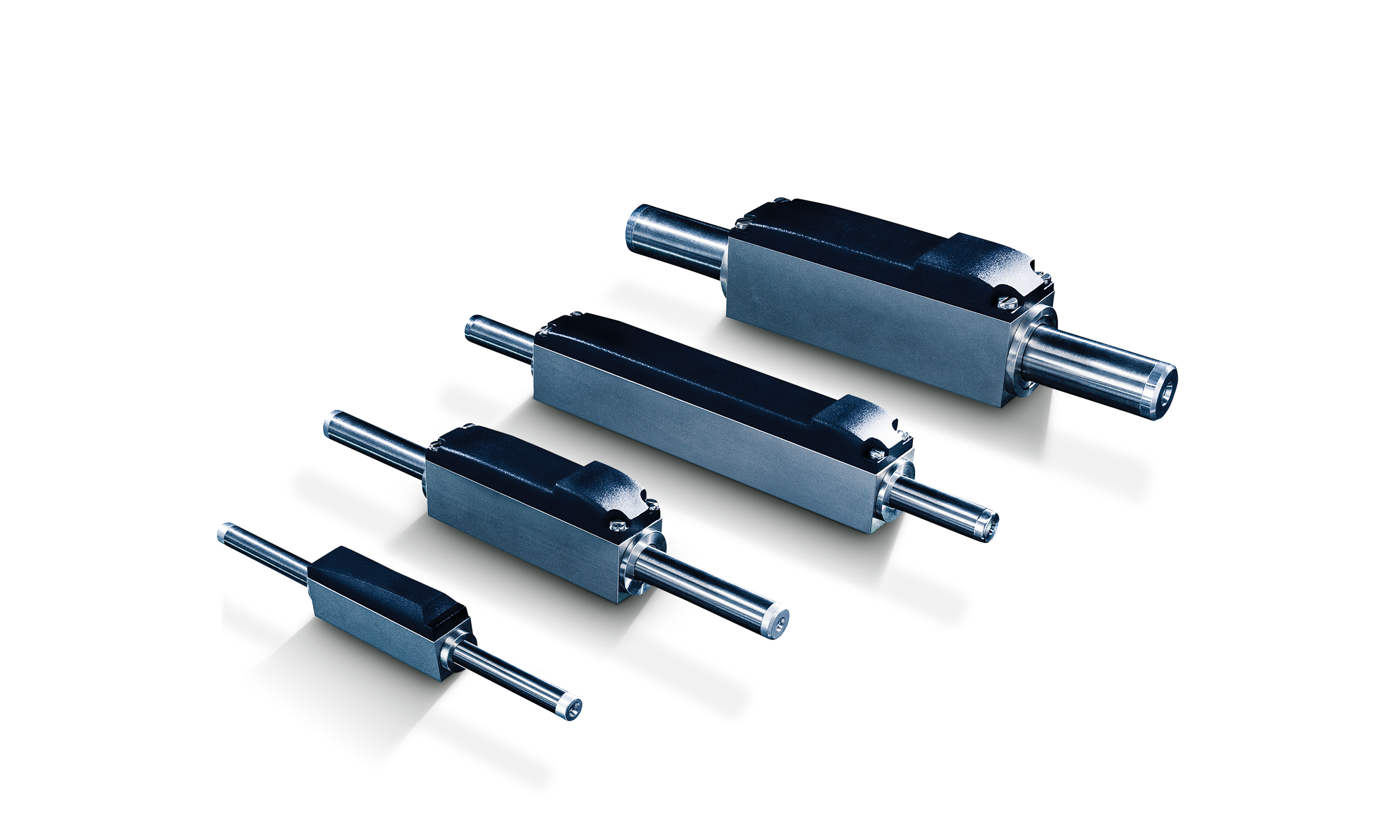

Linear DC-Servomotors
FAULHABER Linear DC-Servomotors are a unique solution for small and micro linear motion applications.
They combine the dynamic motion performance and robust design typical of a pneumatic system with the high reliability and silence of a brushless motor.
Applications include solutions where highly dynamic positioning are required; long life time (millions of cycles) grants high reliability and low maintenance in any complex system such as medical devices, optics, and instrumentation.
The linear motors consisting of a solid stator housing, coil assembly and a multi-pole magnetic forcer rod.
High power magnets help the motor achieve its excellent force and dynamic speed performance.
- High dynamics
- Excellent force to volume ratio
- No residual force present
- Non-magnetic steel housing
- Compact and robust construction
- No lubrication required
- Simple installation and configuration
- Precision controllers available
Coined QUICKSHAFT® these motors can be used applications where precision dynamic linear motion is required in a compact package.
For example: Industrial & Lab Automation, Robotics, Medical Devices and High End Pumping Systems.
More recently the LM1483 has been released meaning the performance range of the family is continuous force from 1.02 N to 9.2 N and a peak force from 2.74 N up to 27.6 N.
See data sheet download below or visit FAULHABER for latest updates and further information about micro-drives.
