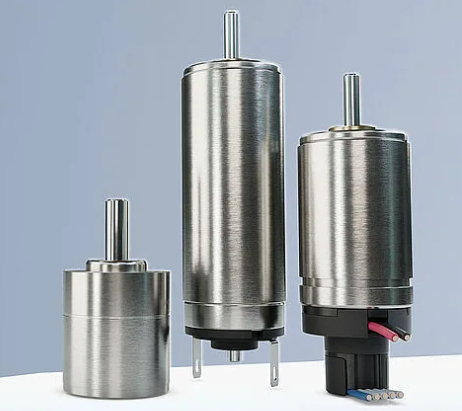

2-Pole Brushless DC-Motors

Faulhaber has a range of efficient 2-pole & 4-pole brushless DC (BLDC) motor solutions

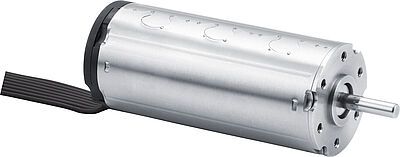

Product Features 2-pole Brushless DC Micromotors

• No cogging or preferred rotor position
• No iron losses
• Extremely low current consumption
• Extremely light and compact
• Smooth and accurate speed, position and torque control
• Electronic commutation for extremely long operational lifetime
• Control electronics available for all motor series
• Available as linear actuator

Data sheets & further info available here

Flat Brushless DC-Motors

General Benefits of Brushless Flat DC Micromotors

• No cogging or preferred rotor position
• No hysteresis or eddy current losses
• Extremely low current consumption
• Exceptional power to volume ratio
• Ultra flat design
• Extremely light and compact
• Smooth and accurate speed control
• Speed up to 40’000 rpm
• Electronic commutation for high operational lifetime
• High precision gearboxes available
• Control electronics available for all motor series
• 4/8-pole design

data sheets available in catalogue in download More information


Ext Rotor Slotted Flat Motors

• Torque: up to 134 mNm
• Length: 14, 16 & 21 mm
• Diameter: 22, 32 & 42 mm
• Continuous power output: up to 100 W
• Speed: up to 10,000 rpm
• Sensors: integrated digital encoders

More and more applications in the areas of robotics, prosthetics, laboratory automation, medical device technology, pumps, and aircraft cabin equipment require high torque in a very short length. FAULHABER has raised the bar in the area of high performance, external rotor, slotted drives with the introduction of the FAULHABER BXT family of flat brushless DC motors.

Thanks to innovative winding technology and an optimised design, the motors are just 14, 16 and 21 mm in length but deliver torques up to 134 mNm, within a diameter of 22 mm, 32 mm and 42 mm respectively. They are designed for a continuous output power up to 100 W and thus significantly exceed benchmarks in this class of drives, particularly with respect to the ratio between the torque to length, volume and weight, which benefits applications where available space is at a premium.

As a standard, these new products come equipped with digital Hall sensors. They are designed for speeds of up to 10,000 rpm and can be combined with a wide variety of gears, encoders, brakes and drive electronics from the extensive FAULHABER product range.

FAULHABER specializes in modifications to the mechanical and electrical interfaces of the motors to provide solutions configured to each application. The motors feature standard single lead wires and thus offer a flexible electrical interface with multiple industrial connectors.
