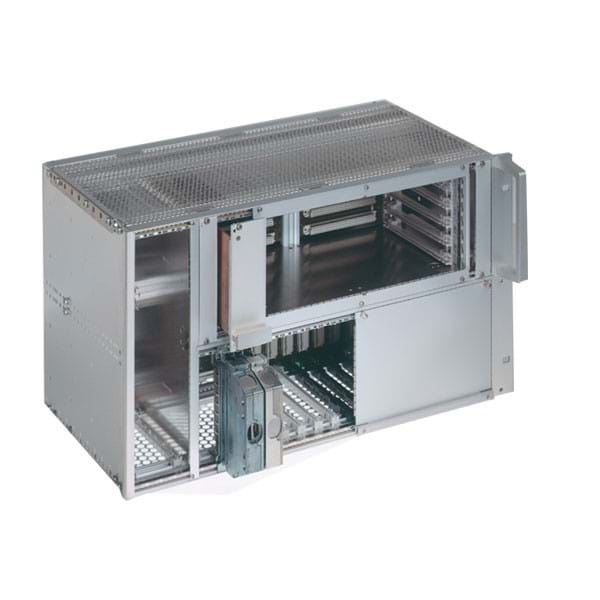

The system dimensions of the RFI- SHIELDED subrack are based on those of the FLEXIBLE subrack as a logical further development to produce the perfectly shielded subrack. This allows unrestricted use of the extensive and complete range of accessories.
The special design features of the RFISHIELDED subrack:
The refined RFI shielding concept enables high shielding effectiveness.
The stable stainless steel contact springs ensure
permanent and reliable bonding, even after a large
number of plug-in cycles.
The perforated RFI cover plates guarantee optimal
air flow for improved heat dissipation.
The use of high-quality, seawater-resistant aluminium
alloys and stainless steel materials removes, for the
most part, the need for unnecessary, environmentally
harmful surface treatment.
There are three versions available of this Subrack:
The standard RFI-shielded version.
Subrack RFI-SHIELDED IEEE
The front is in accordance with IEEE 1101.10. The special profile rail is designed for the use of inser tion and removal handles
(optionally with a hot swap function) for overcoming high insertion and removal resistance. The card guides are fitted with
mechanical coding systems and special bonding for electrostatic discharge.
Subrack RFI-SHIELDED IEEE / Rear I/O
The front and the rear are in accordance with IEEE 1101.10/11. This enables insertion and removal of modules with a front
panel from both the front and the rear of the subrack
